Think your roof is just shingles? Think again. Your roof is actually a smart system. Multiple layers work together above your head right now.
Each one has a job. Each one protects your family. But here’s what most homeowners don’t know.
Those shingles you see? They’re just the surface. Underneath, hidden layers are doing the real work.
They stop the water. They block wind. They keep your house warm. Remove one layer and the whole system fails.
We’re about to break down all 11 layers for you. From the bottom structural deck to the top ridge cap. You’ll see how each one saves you money and keeps your home safe. Ready to look under the hood?

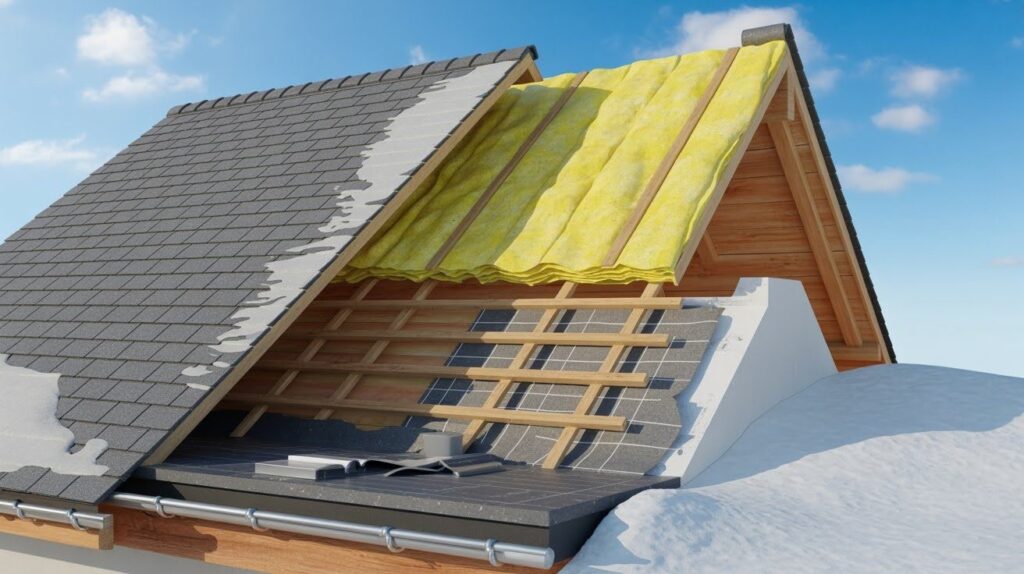

How These Layers Work Together
Your roof layers work as a team. Each one backs up the others. Think of it like multiple security guards protecting your home.
Water hits your shingles first and flows to the gutters. What gets through meets flashing at joints and transitions.
Underlayment and ice shield catch anything else that sneaks past. Your solid deck stops the rest. This creates multiple lines of defense so no single layer has to do all the work.
Your roof also needs the right balance of air and temperature. Insulation keeps your conditioned air inside where it belongs. Ventilation removes excess moisture and heat from your attic space.
Together they prevent ice dams in winter and overheating in summer. Miss one part of this balance and problems start fast. Get both right and your entire roof system can last decades longer than expected.
List of 11 Types of Basic Roof Layers
Here’s your complete roof system breakdown. Each layer has a specific job protecting your home from weather damage.
1. Roof Decking (Sheathing)
Your roof decking is the foundation of everything above. It’s usually made from OSB boards or plywood sheets. This layer sits directly on top of your roof trusses or rafters. Think of it as the floor of your roof system.
Benefits: Structural Base and Fastener Holding
Without solid decking, nothing else works. This layer gives your roof its structural strength. Every nail from your shingles needs something solid to grip.
The decking also creates a smooth, even surface for all the waterproof layers that come next. A strong deck means a strong roof.

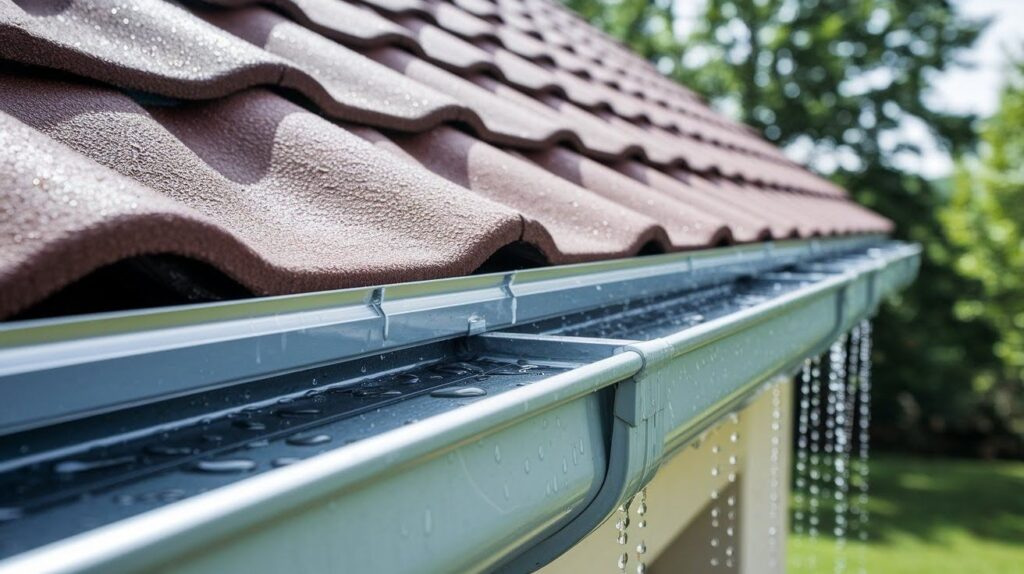

2. Drip Edge (Eaves and Rakes)
Drip edge is a thin metal strip installed along your roof’s edges. Most building codes require it now.
You’ll find it at the bottom edge where gutters attach and along the sides of your roof.
Benefits: Stops Water Backflow and Protects Edges
Here’s why drip edge matters. Water loves to sneak backward under shingles through surface tension. Drip edge stops this sneaky water movement.
It also protects your fascia boards from rot. Your gutters work better, too, because water drips cleanly into them instead of running behind them.
3. Ice & Water Shield
Ice and water shield is a sticky, rubberized membrane. Roofers install it in problem areas first. Bottom edges where ice dams form.
Valleys where water rushes down. Around chimneys and vents. Any low-slope areas on your roof?
Benefits: Self-Sealing Waterproofing and Ice Dam Defense
This stuff seals around every nail that goes through it. When ice blocks your gutters, this shield stops the backup water from getting inside.
It’s like insurance for the areas where leaks love to start. Smart homeowners never skip this layer in cold climates.
4. Roof Underlayment (Felt or Synthetic)
Underlayment covers your entire roof deck like a blanket. It goes under your shingles across the whole roof.
You can choose old school felt paper or newer synthetic materials.
Benefits: Last Line of Defense When Shingles Fail
This is your backup plan when shingles fail. Wind can lift shingles. Hail can crack them. When that happens, the underlayment keeps water out until you can make repairs.
Synthetic versions last longer and handle weather better than felt. They cost more upfront but give you better protection.

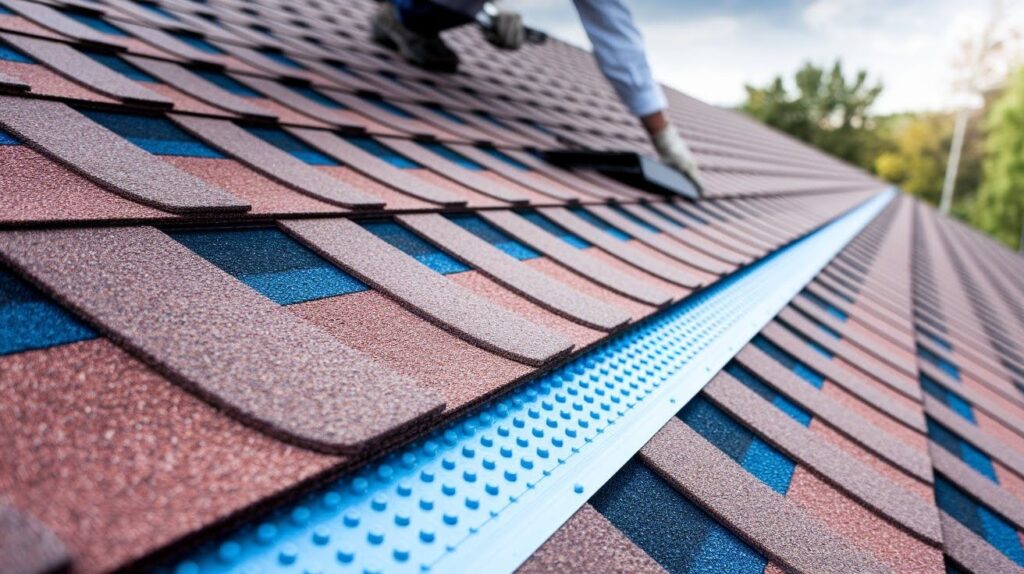

5. Starter Shingles (Edge Course)
Starter shingles are special pieces that go along your roof edges first. They’re not the same as regular shingles.
They have adhesive strips in exactly the right spots to seal your first row of shingles.
Benefits: Factory Sealant and Wind Resistance
Regular shingles have gaps between them. Starter shingles fill those gaps at the edges. This stops wind from getting under your shingles and lifting them up.
Most shingle warranties require proper starter shingles. Skip them and you might void your warranty.

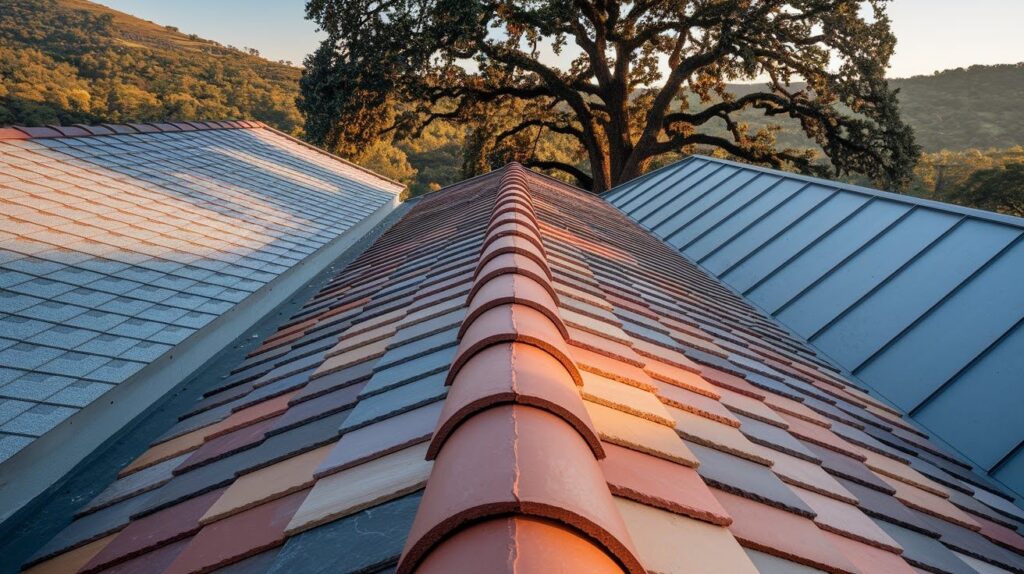

6. Main Roofing Material (Shingles/Metal/Tile/Synthetic)
This is what everyone sees from the street. Asphalt shingles are most common. You can also choose metal panels, cedar shakes, synthetic materials, or slate tiles.
Each material has a different look and lifespan.
Benefits: Primary Weather Protection and Curb Appeal
Your main roofing material is your home’s first defense against weather. It also affects your home’s appearance and value.
Quality materials last longer and often come with better warranties. Cheap materials might save money now but cost more later through repairs and early replacement.

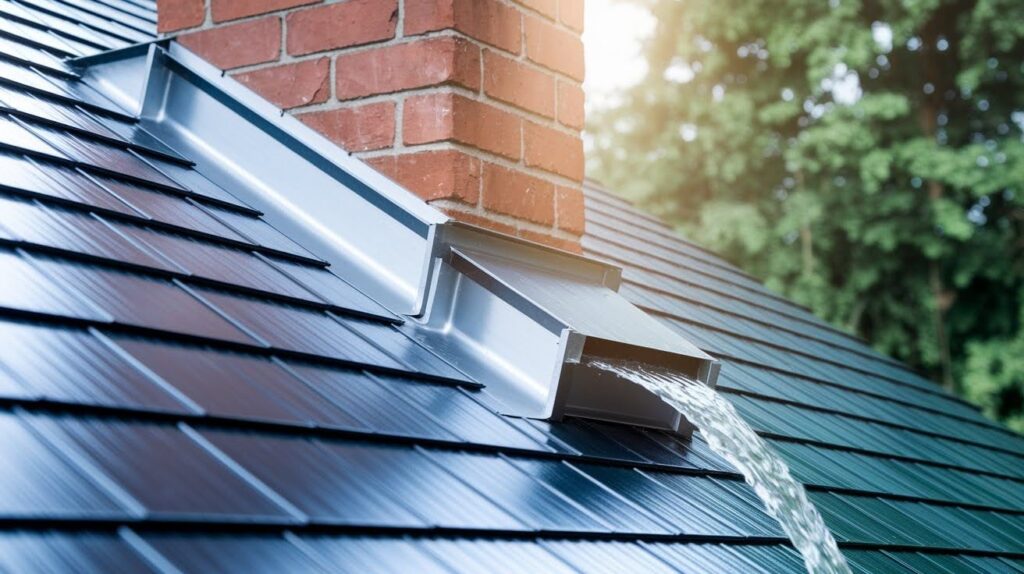

7. Roof Flashing (Valleys, Walls, Chimneys, Penetrations)
Flashing is shaped metal pieces that seal transitions on your roof. Valleys where two roof sections meet.
Places where your roof meets walls. Around chimneys, vents, and skylights. Usually made from aluminum, copper, or galvanized steel.
Benefits: Directs Water Away from Vulnerable Areas
Flashing channels water away from vulnerable spots. These transition areas see the most water flow and stress.
Good flashing often outlasts the shingles around it. When you reroof, quality flashing can sometimes be reused if it’s still in good shape.
8. Ridge Capping
Ridge capping covers the peak of your roof where two slopes meet. Purpose-made ridge caps work much better than cutting up regular shingles.
They’re designed specifically for this high-stress area.
Benefits: Seals High Points Against Wind-Driven Rain
Your roof’s peak takes the worst beating from wind and weather. Special ridge caps seal against wind-driven rain better than makeshift solutions.
They also give your roof a clean, finished look from every angle. Proper ridge capping is worth the extra cost.

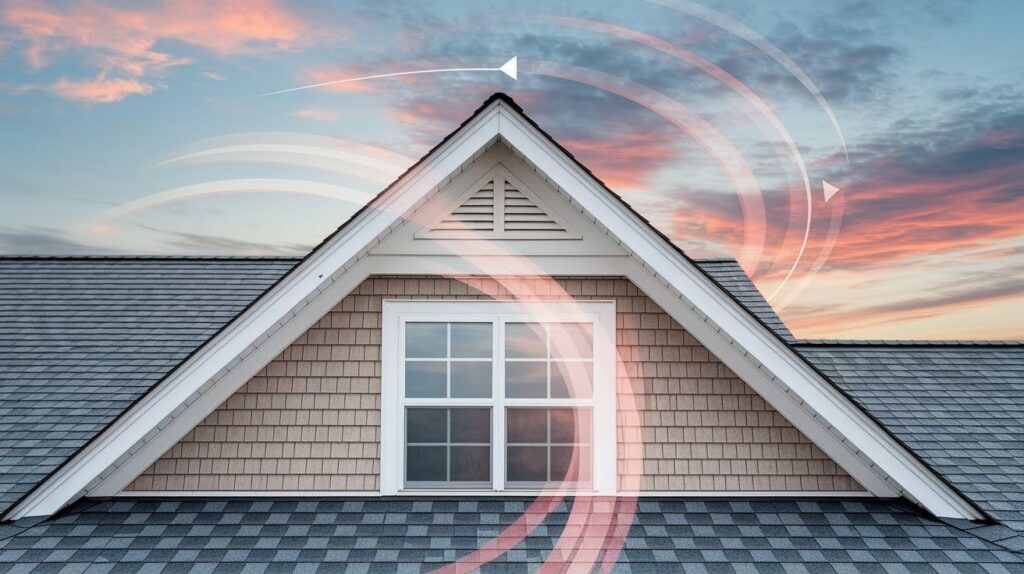

9. Roof Vents (Intake + Exhaust System)
Your roof needs to breathe through a system of intake and exhaust vents. Ridge vents with baffles at the peak.
Soffit vents under the eaves for air intake. Some homes have turbines, powered fans, or solar vents for extra exhaust.
Benefits: Moisture Control and Extended Roof Life
Good ventilation removes moisture and heat from your attic. This keeps your shingles from overheating in summer.
It prevents ice dams in winter. Your entire roof system lasts longer with proper airflow. Active ventilation systems often work better than passive ones in tough climates.

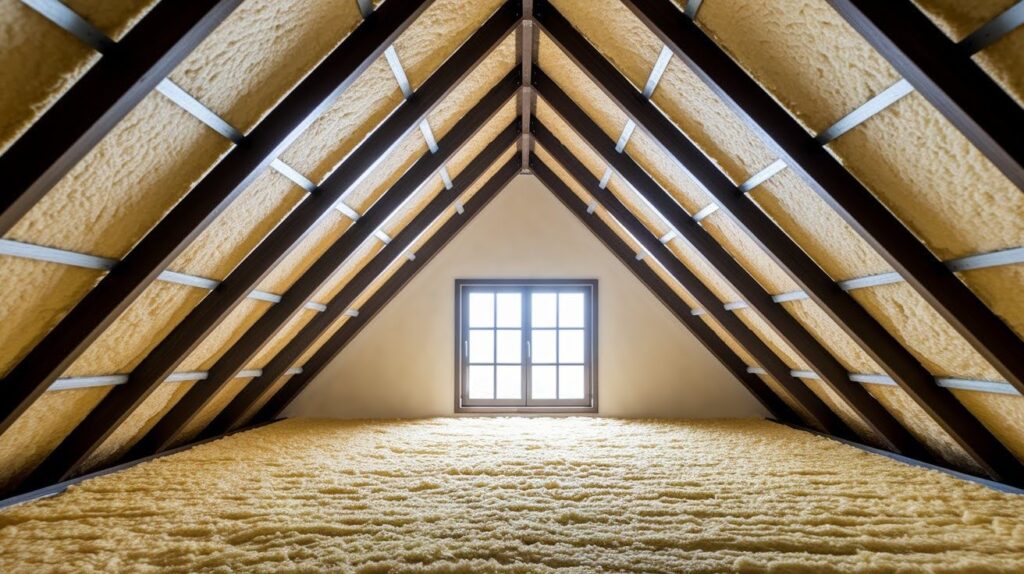

10. Insulation (Attic or Roofline)
Insulation goes either on your attic floor or directly under the roof deck. Spray foam at the roofline creates a conditioned attic space.
Traditional insulation on the attic floor is more common and usually cheaper.
Benefits: Energy Efficiency and Temperature Control
Good insulation cuts your energy bills and makes your home more comfortable. It also reduces temperature stress on your roof system.
Hot attics in summer can damage shingles from underneath. Cold spots in winter can cause ice dams. Proper insulation prevents both problems.
11. Fascia and Soffit (Roof Edge Assembly)
Fascia boards run along your roof edges and support your gutters. Soffits cover the underside of your roof overhangs.
Vented soffits have holes or slots to let air flow into your attic space.
Benefits: Edge Protection and Ventilation Support
These finishing pieces protect your roof’s edges from weather damage. Fascia keeps water from getting behind your gutters.
Vented soffits provide the intake airflow your roof ventilation system needs. They also give your home a clean, finished appearance that affects curb appeal and value.
Common Mistakes to Avoid
Many homeowners and even some contractors take shortcuts that cause expensive problems later. These mistakes might save a few dollars today but cost thousands in repairs tomorrow.
- Skipping the drip edge completely: Some roofers leave it off to save time and money. Without a drip edge, water sneaks behind your gutters and rots your fascia boards.
- Using cut regular shingles as ridge caps: This looks terrible and doesn’t seal properly against wind and rain. Purpose-made ridge caps cost more but actually protect your roof’s most vulnerable area.
- Insufficient ice and water shield coverage: Many roofers only put it where code requires, instead of covering all the problem areas. Valleys, low slopes, and areas around vents need extra protection.
- Mismatched ventilation systems: Having exhaust vents without enough intake vents creates problems. Make sure your roofer calculates the right amount of both types for your specific roof size and design.
Conclusion
Your roof is more than what meets the eye. Those 11 layers we covered work together to keep your family dry and comfortable.
From the structural deck at the bottom to the ridge caps at the peak, each piece has a job.
They stop leaks before they start. They manage heat and moisture that could damage your home. When installed correctly, they can add decades to your roof’s life.
Here’s what you need to do next. Get detailed estimates from qualified contractors. Make sure they specify each layer and where it goes.
Don’t let anyone skip steps to save money. Your warranties depend on proper installation. Your family’s protection depends on it, too. A good roof system is an investment that pays you back for years.
Frequently Asked Questions
What’s the difference between roof decking and underlayment?
Roof decking is the structural wood base that everything sits on. Underlayment is the waterproof barrier that goes on top of the decking but under your shingles.
Do I really need ice and water shield in warmer climates?
Yes, ice and water shield protects more than just ice dams. It seals around nails and stops wind-driven rain from getting through vulnerable areas like valleys and roof edges.
Can I use regular shingles instead of starter shingles?
Regular shingles don’t have adhesive in the right places for roof edges. Starter shingles are designed specifically to seal the gaps and prevent wind uplift at your roof’s most vulnerable spots.
How do I know if my roof ventilation is working properly?
Check your attic temperature in summer and look for ice buildup in winter. Proper ventilation keeps attics close to outside temperature and prevents moisture problems year round.
Which roof layer is most important for preventing leaks?
No single layer does all the work, but flashing around chimneys, vents, and valleys causes the most leak problems. Good flashing installation is critical because these areas handle the most water flow.
